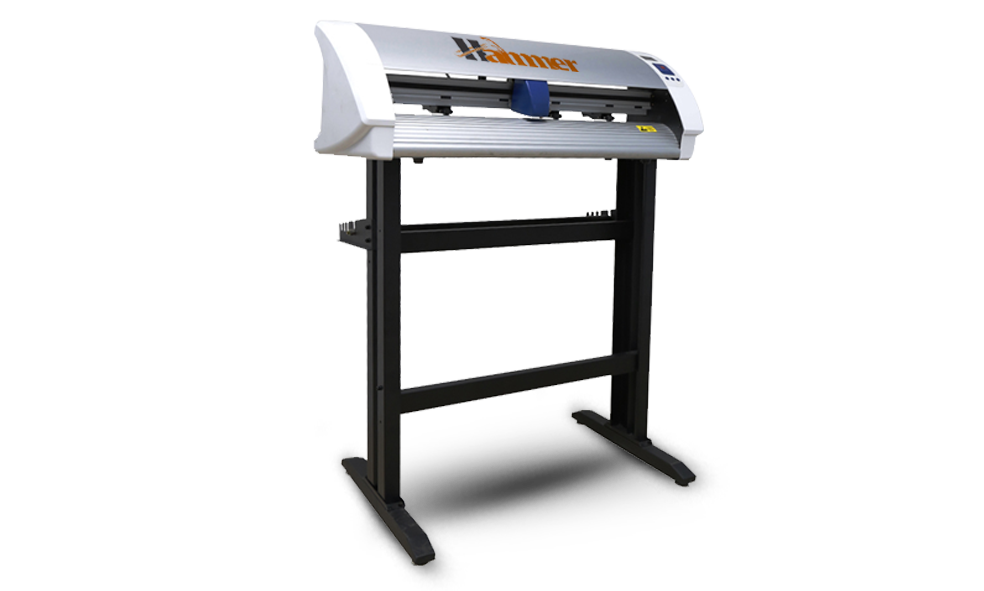

E-24XL

HAMMER


SPECIFICATION


Media way

Optional

Mainboard

32-bit ARM7 CPU, 168MHz, 128Mb High-speed CACHE memory

Control Panel

9 industrial silicone buttons+128*64 industrial screen

Driver

High speed, big power step motor, micro-step driver

Maximum Paper Feed Width

790mm

Maximum Cutting Width

680mm

Maximum Cutting Speed

900mm/s

Cutting force

0-1000g (digital adjustment)

Mechanical Precision

mm0.025

Repeatable Precision

0.025

Type of Plotter Pen

All type diameter 11.4mm plotter pen

Plotter instruction

Compatible DM/PL,HP/GL

Interface

USB/ U disk/ Serial Port/ WIFI (Optional)

Power Supply

AC220V/110V, 50Hz

Power Consumption

80W

Knife (Blade)

Imported hardness alloy steel blade
