L5

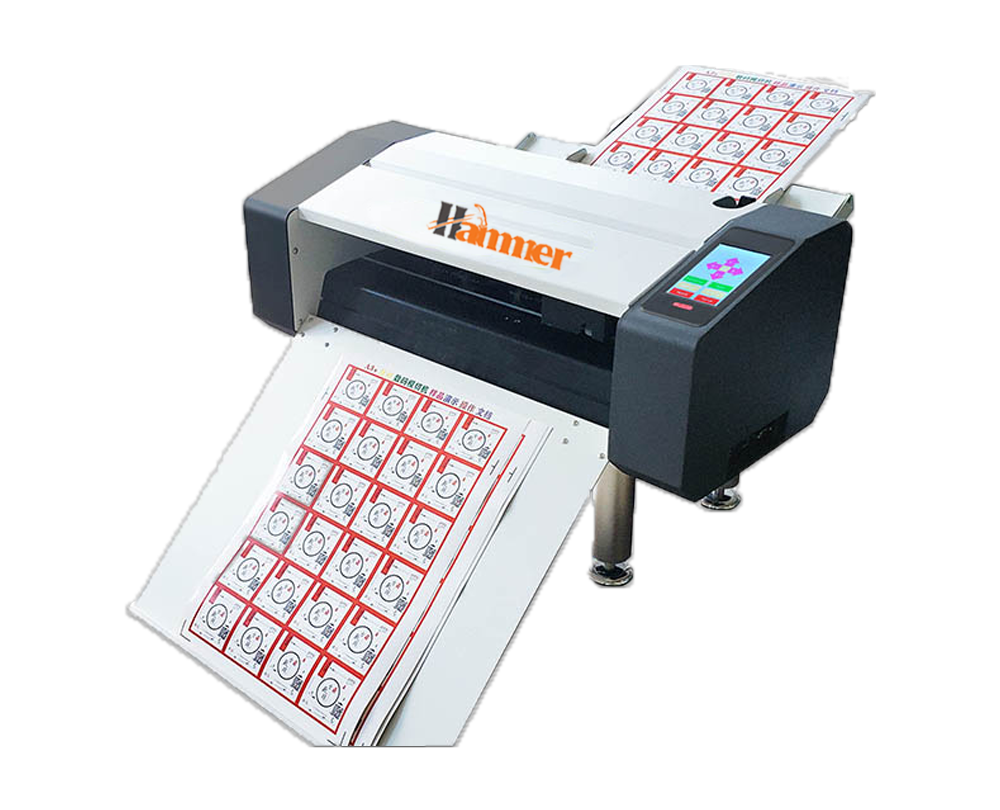

HAMMER


SPECIFICATION


media way

Auto paper feeding

Mainboard

32-bit ARM7 CPU 168MHz,128Mb,High-speed CACHE memory

Control panel

10 membrane buttons+3.0 inch touch screen

driver

High speed, big power step motor, micro-step driver(Servo moto optional)

Maximum cuttingArea

(483*329)mm

Maximum cutting speed

500mm/s

Cutting force

10-1000g(digital adjustment)

Mechanical precision

0.025mm

Repeatable precision

<±0.025mm

Type of plotter pen

All types diameter 11.4mm plotter pen

Plotter instruction

Auto Compatible DM/PL,HP/GL

Interface

USB/U disk/Serial Port/WiFi

Power supply

AC220V/110V,50Hz

Power consumption

80W

Knife(blade)

Imported hardness alloy steel blade

Operating environment

Temperature:5-35°C,Relative Humidity:30%~70%

Package size

810*540*340mm(can be customized)

Gross weight

32kg
