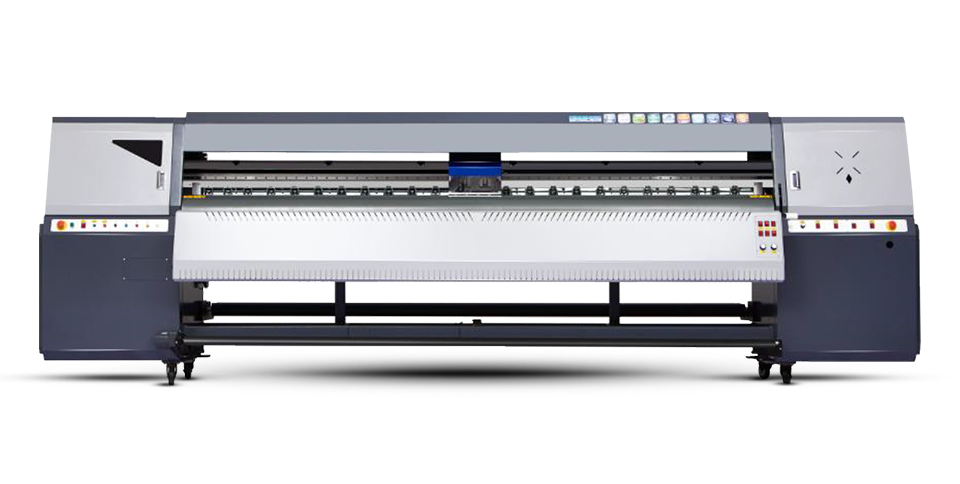

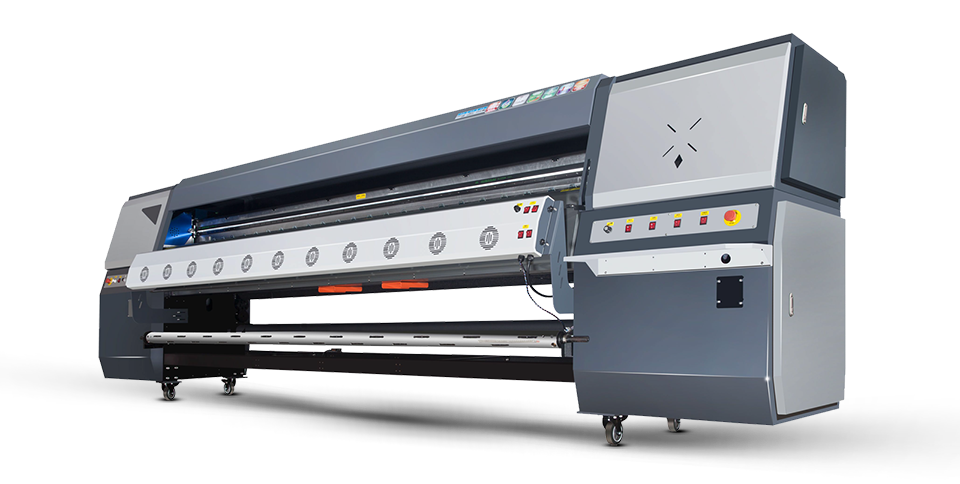

T8Q

TAIMES


Features

1.Main bottom frame was wholly milled by German imported 6 meter planer typer milling, which error is only than 0.05mm. Double layer trusses welding, bending resistance is far more better thin metal bending beam.

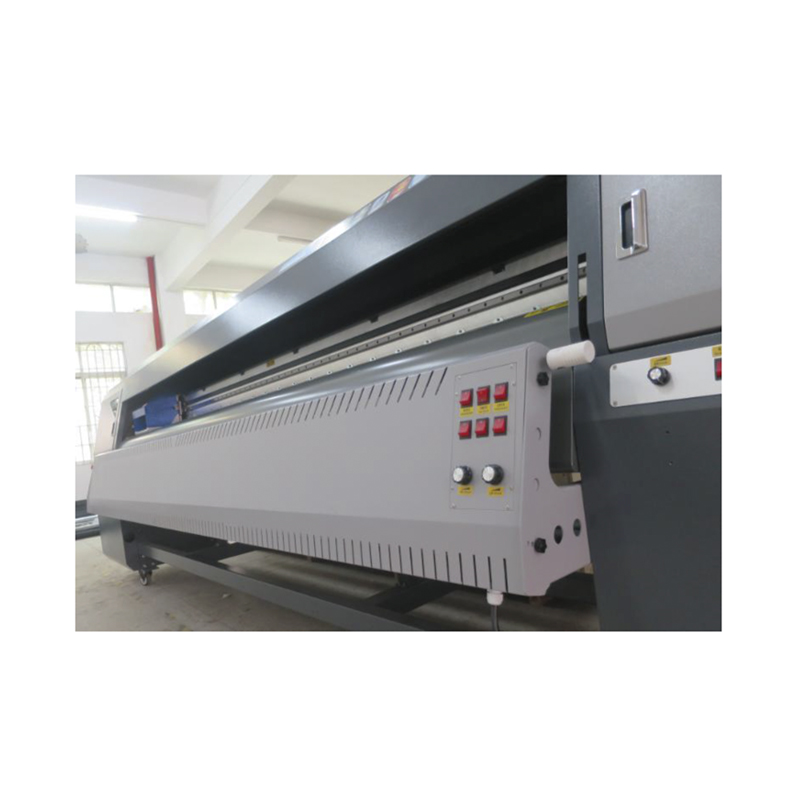

2.Infrared heating and fan-drying system are integrated into one set, which make the printing dry more quickly.

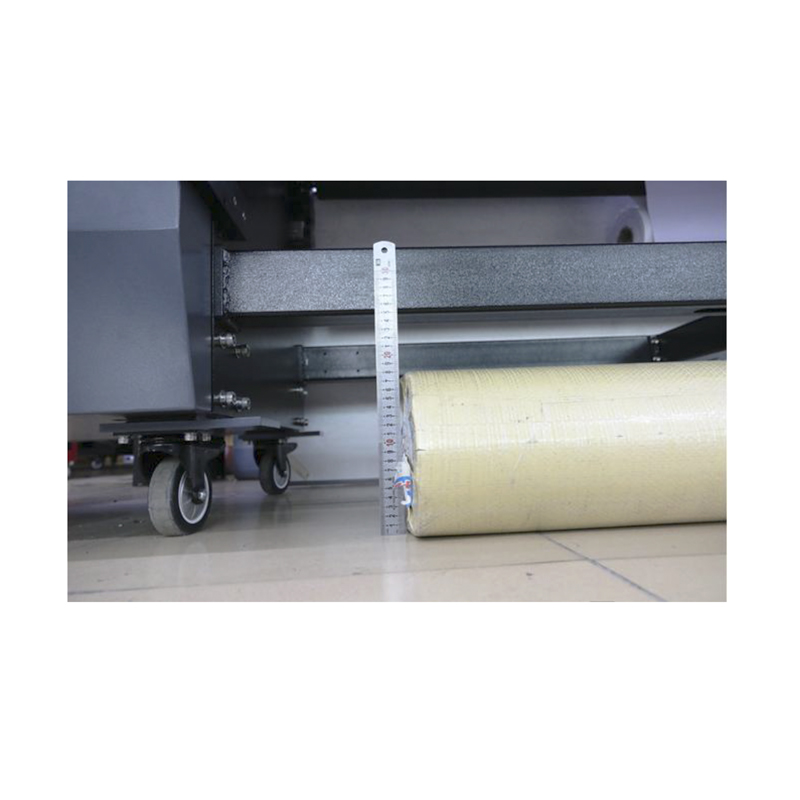

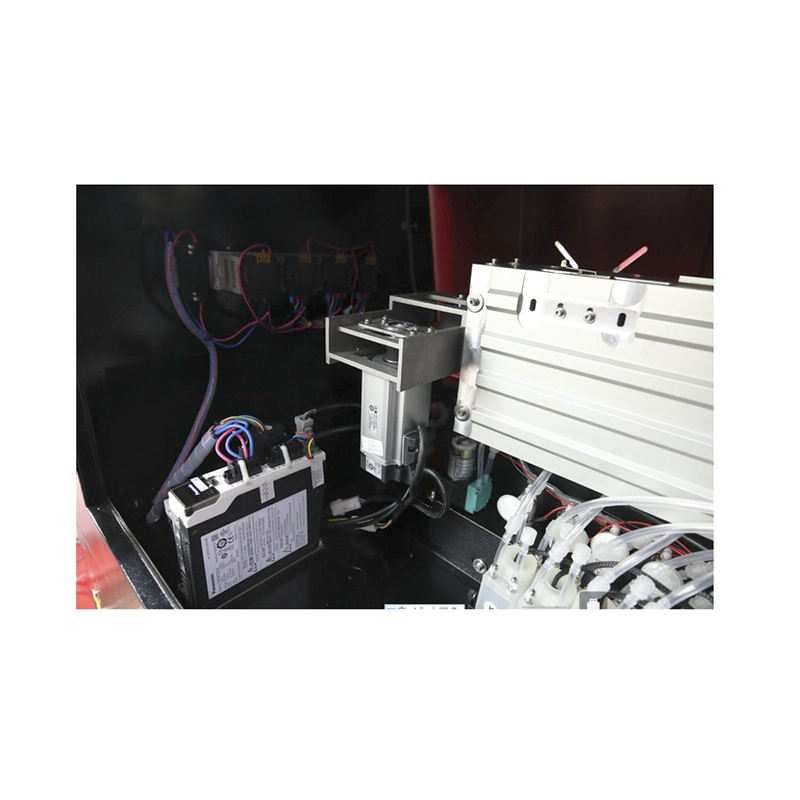

3.Stable foodthold steel structure. The media can go easily through beneath the machine and conveniently up-load the media. 4.imported 400W Panasonic AC servo motor system, the powerful motor can keep the printing work for long time.

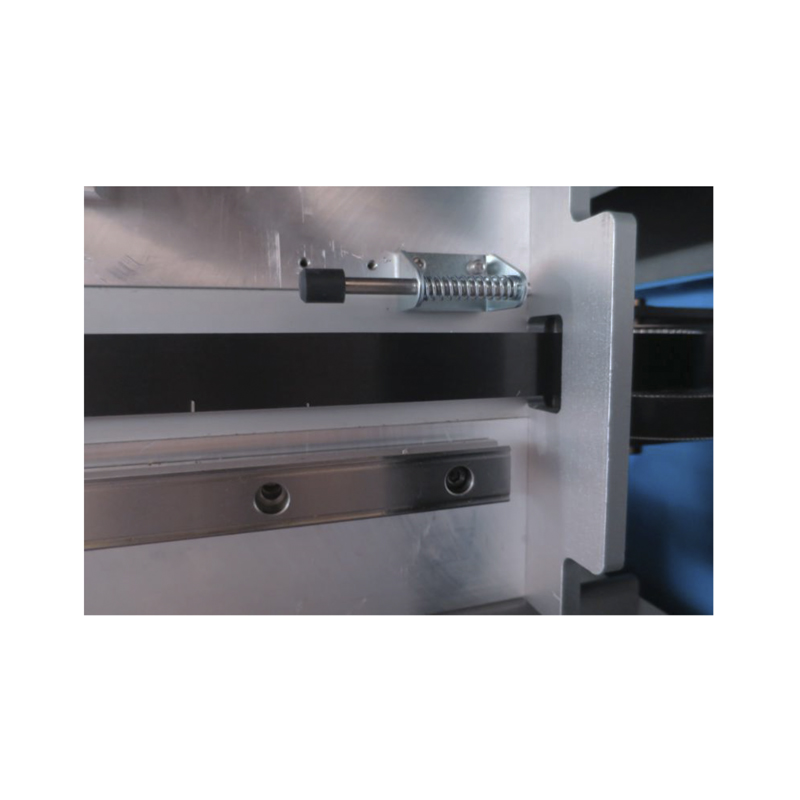

5.Adopt the THK rail, make sure the long use in printing and head carrier moves steadily and quielty. The German IGUS chain has been cretiefd with its quality

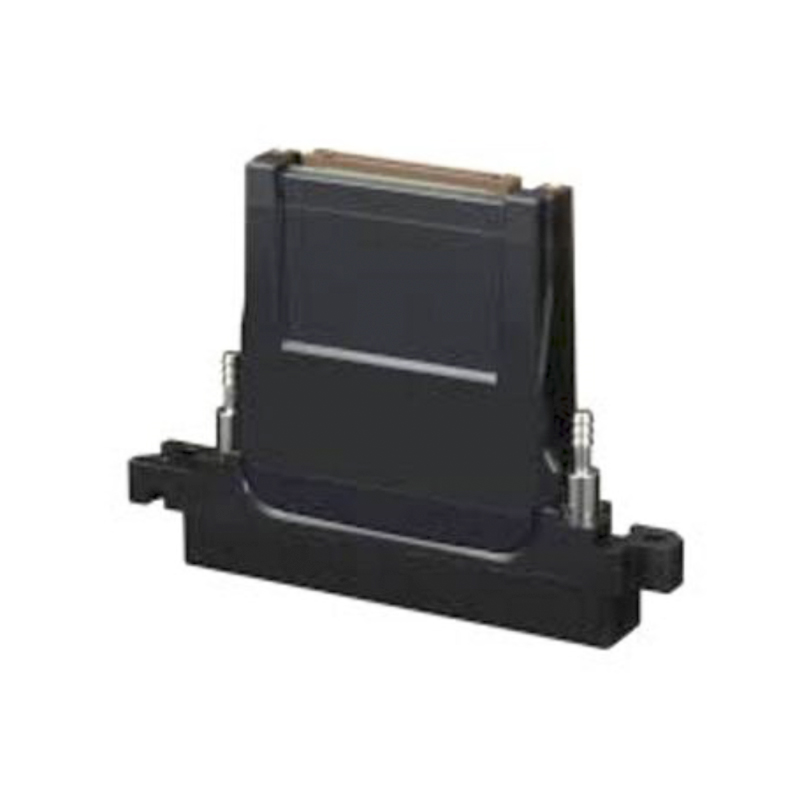

6.TAIMES T8Q printer is appiled with konica minolta 512i super wide printhed, 8 heads cover over 144mm printing width, compeltely promotes georgeous colors and hurricance speed
7.konica minotla certified and strongly recommended control system, develop printhead's best core performance while the boards are rareluy fault

BRAND

TAIMES

MODEL

T8Q

RIP SOFTWARE

Photoprint10.5 or maintop V5.30

PRINT HEAD

KONICA-KM512-1024-512i

Printing Speed

KM512i-30PL

4 HEADS

  • 2PASS 115sqm/H/
  • 3PASS 80sqm/H
  • 4PASS 60sqm/H

KM512i-30PL

8 HEADS

  • 2PASS 230sqm/H/
  • 3PASS 160sqm/H
  • 4PASS 120sqm/H

t8q pro

KM1024i-13PL

4 HEADS

  • 2PASS 110sqm/H
  • 3PASS 75sqm/H
  • 4PASS 60sqm/H

KM1024i-13PL

8 HEADS

  • 2PASS 220sqm/H
  • 3PASS 150sqm/H
  • 4PASS 120sqm/H

KM1024i-30PL

4 HEADS

  • 1PASS 240sqm/H/
  • 2PASS 130sqm/H
  • 3PASS 88sqm/H

KM1024i-30PL

8 HEADS

  • 1PASS 480sqm/H/
  • 2PASS 260sqm/H
  • 3PASS 175sqm/H

INK TYPE

COLOR

4 Colors(C,M,Y,K)/6 Colors(C,M,Y,K,LC,LM)

TYPE

Solvent Ink

CAPACITY

5L per Main Tank of Each Color

INK SUPPLY

Low Ink Dectector,Auto or Manual Ink Supply System

SPECIFICATION


width

3300mm(10.8ft)

Auto media feeding system

Equipped(Max, Midea wight 120KG)

media type

Vinyl, Polyester, Flex, Back-lit film, Window film, etc

auto cleaning system

positive pressure cleaning anti-clogged flash function capping system.

pre-heating & drying System

Equipped(Drying system optinal)

Clamp

Equipped

Print interface

USB 2.0

printhed height

2 to 4mm above media adjustable

Input power

AC 200V, 50Hz

Operating environmet

Tempeture: 20-28C HUMIDITY 40%-60%

Machine dinmesion / N.W

L500XW1275XH1580MM:net weight:880KG

Package dinmesion/G.W

L5150xW1120*H1860;Gross weight: 1000KG;Two units in one 20 feen container
