TF9060A

TAIMES


Features

1- Printing Size: A1 900X600mm(35x23.5inchs)
2- Rotary 360 Printing devices diameter :50-140mm
3- Printing suction platform height :90mm;Without: 800mm
4- Industrial TOSHIBA heads, new offering of 12 moths guarantee
5- TOSHIBA Certified CMYK Lc. Lm, White & Varnish 8 colors UV Inks
6- Taimes Power ICC profile for RIPPRINT V5.11 or Photoprint V19 (Option)

BRAND

TAIMES

MODEL

TF9060A

RIP SOFTWARE

RIPPRINT V5.11
Photoprint (Option)

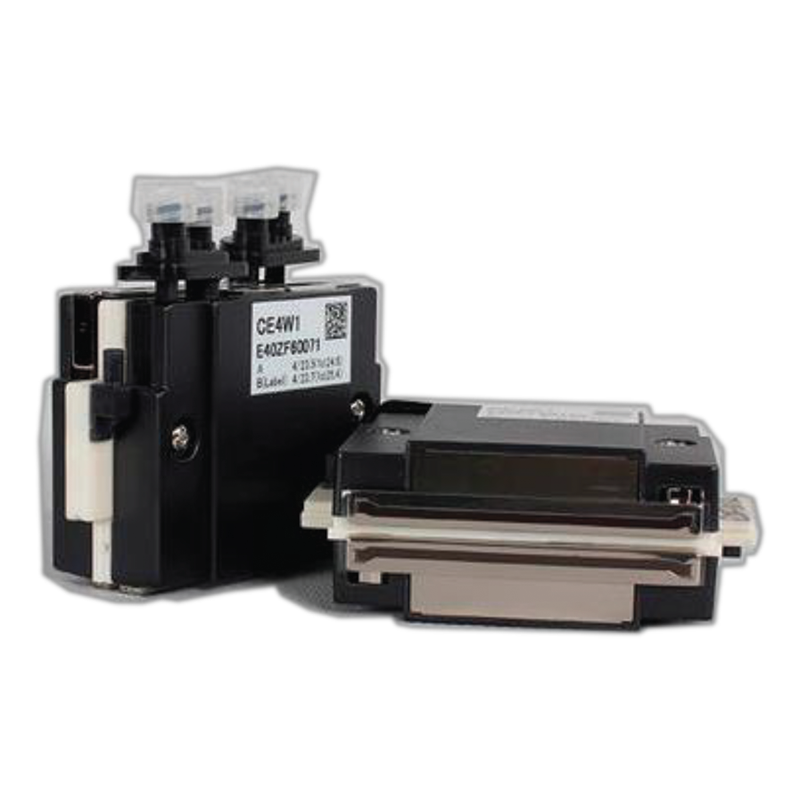

PRINT HEAD

TOSHIBA CE4

Printing Speed

  • Sketch Mode - 600*900dpi- 7.4*sqm/h
  • Production Mode - 600*900dpi- 6.8*sqm/h
  • High Quality Mode - 600*900- 4.4*sqm/h

INK TYPE

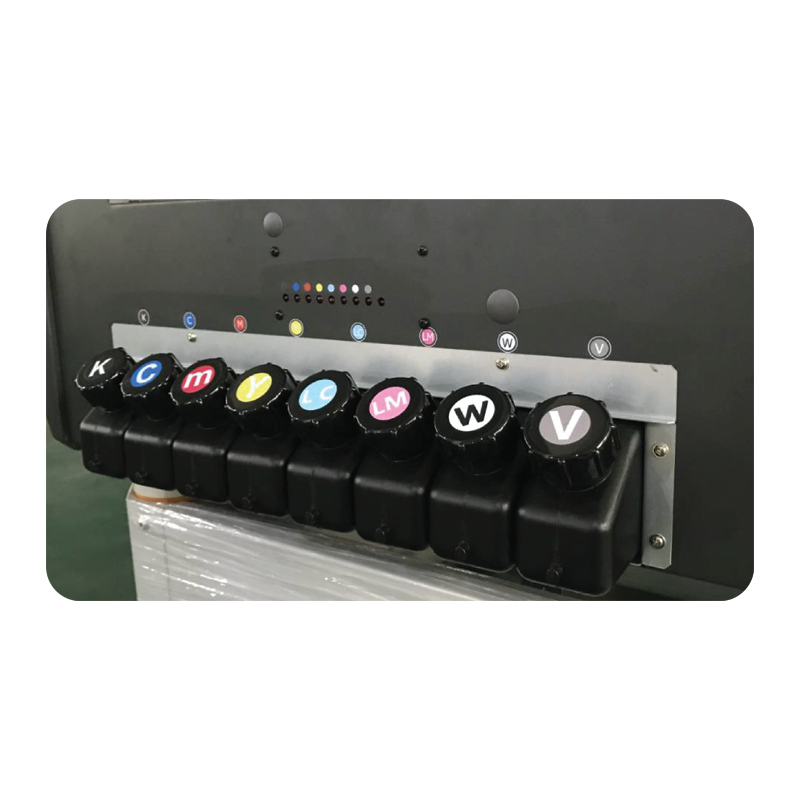

TAIMES CMYK Lc. Lm, White & Varnish 8 colors UV Inks and Separate control switch

SPECIFICATION


Head Quantity

3/4/5Spcs

Print Size

900*600mm

Head Height

0-800mm

Printer Accuracy

600*1800dp

Power Requirements

AC 220(=/-10%) 50/60HZ 16A

Media Type

Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc.

Environment Temperature

20-25C, Humidity:15-20%

Dimension Size

L1980*W980*H1150 mm (Length*Width*Height)

Package/G.M

L2300*W1250*H1100`mm (Length*Width*Height) 240KG

GALLERY
